License Tag Capture Camera
Description
-1/3" Sony Super HAD II Hi-Res CCD
-600/700TVL (Day/Night)
-6~60mm Lens
-96pc IR LED
-70m IR Range
-Up to 124 MPH (200 KPH) Capture Speed
-IP 66/67 Protection
-Fog Penetration Technology
-Headlight Suppression Technology
-Wide Dynamic Range
-3D Digital Noise Reduction
-Power Supply: 24VAC/4.5w
User's Manual
PDF

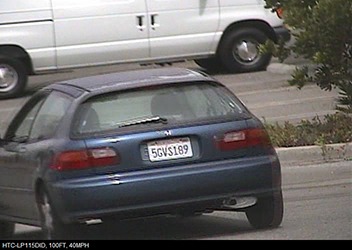

License Capture (Day)

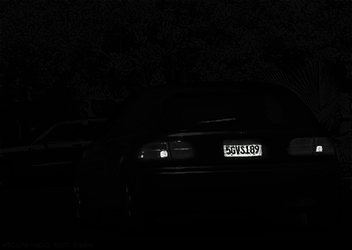

License Capture (Night)
Key Features
1.
 600TVL Day, 700TVL Night
2.
 96pc IR LED w/ 70m IR Range
3.
 6~60mm Lens
4.
 Capture Motion Up To 124 MPH (200 KPH)
5.
 Fog penetration Technology
6.
 Headlight Suppression Technology
7.
 IP 66/67
Product Description
This camera integrates four intelligent traffic modes that enable it to adjust automatically to the image-capture environment. Intelligent traffic cameras adjust to the mode appropriate for conditions, enabling them to monitor surroudning areas to gather information on vehicle type, color and shape.
Specifications
RESOLUTION
HIGH
Item Number
HTC-LP112DID
Pick Up Device
1/3” Sony Super HAD II Hi-Res CCD
Effective Pixels (HxV)
NTSC: 768x494, PAL: 752x582
Horizontal Resolution
600TVL Day, 700TVL Night
IR LED
96pcs LED
IR Range
70m distance (240ft)
Minimum Illumination
0.01 Lux (Day Light), 0.0 Lux (w/IR LED on)
Sensitivity D/N
More than 50dB
Lens
6~60mm
Day/Night Mode
Auto / Mono / Color / D/N Sync / Schedule
Iris Control
Video / DC Driver
Lumii
9 Levels Selectable
White Balance
ATW1 / ATW2 / Manual
Electric Shutter
Auto (1/60 to 1/100k sec.) / Manual 46 steps (1/60 to 1/100k sec.)
BLC
BLC1-6 / Off
Aperture Control
High / Mid / Low
Headlight Supression
10 Levels Selectable
Fog Penetration
6 Levels Selectable
Wide Dynamic Range
On / Off
Digital Noise Reduction
2DNR / 3DNR / Off
Video Output
1VP-P, 75 Ohms
Dimensions (LxWxH)
422 x 174 x 145mm (16.6 x 6.9 x 5.7inch)
Power Supply
AC 24V
Power Consumption
4.5W at AC 24V
Weight
13.22lbs
Storage Temperature
-30°C~+60°C
Operation Temperature
-30°C~+50°C
Specifications are subject to change without notice.
